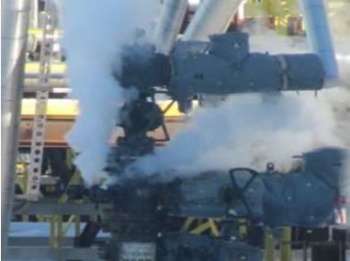

Gate valve bonnet failure due to fluid thermal expansion in confined valve cavity caused release to the environment.
Schematic of a gate valve with bonnet identified.

At the start up of a steam-assisted gravity drainage application, pressure build up in a gate valve cavity due to thermal expansion of fluids at high temperature caused the bonnet to fail and steam to be released to the environment.

Description of incident

In a steam-assisted gravity drainage application, immediately after start-up, a gate valve bonnet failure caused a release to atmosphere. In thermal applications throughout the oil and gas industry, there have been incidents of valve failures during start-up. Resulting damage can include stretching studs and loss of pressure integrity between the body and bonnet.

What caused it?

  • Pressure build-up occurs in the gate valve cavity from thermal expansion of fluids. Extreme pressure build-up from fluid expansion can occur if the valve body is completely full of fluids (e.g., a grease/oil/water mixture) and heated to elevated temperatures. Such pressure can exceed the rated working pressure of the valve.
  • A valve with the ability to isolate the body cavity from the flow line may be at risk.
  • Presence of grease or compounds designed to enhance sealing ability may exacerbate the condition.
  • Grease or a grease/oil/water mixture when heated in a sealed enclosure can exceed 7000 psi (48.5 MPa) at 250 °F (121 °C).
  • Gate valve body cavities that are not 100% full of fluids do not experience excessive pressure as the vessel was heated. Trapped air or gas allows room for thermal expansion.

Corrective and preventive actions

  • Before start-up for thermal applications, ensure the valve bodies have a void for fluids to expand into as the temperature rises.
  • Before start-up, ensure valves are in good working order and have not been compromised by ice expansion damage.
  • During start-up, position the valves’ sealing mechanism (if possible) where the cavity is not isolated.

References

  • The Safety Association for Canada's Upstream Oil and Gas Industry
